A pack of custom ComfyUI nodes that wire your workflows straight into a PixlStash vault. Load images by project, set, or character; search by face, picture, or meaning; gate generations by likeness; and save the results back with full metadata with no manual exporting in between.
Two short clips driving PixlStash from ComfyUI. Pull matching faces out of your vault, and extend a vault image beyond its borders.
Use the PixlStash ComfyUI nodes to search your library for pictures matching a face, then pull them straight into your workflow to edit them with no manual exporting in between.
A ready-made ComfyUI node and workflow lets you load an image, outpaint it, extending it beyond its original borders and saving the result back to PixlStash.
Connection credentials (URL and API token) are configured once in ComfyUI Settings > PixlStash and read by the nodes at runtime. They never appear as node widgets or in saved workflow JSON.
Selects a project from your vault and outputs a
PIXLSTASH_PROJECT wire that scopes the operations of
every node downstream.
Selects a set within a project, outputting
PIXLSTASH_PROJECT and PIXLSTASH_SET
wires. Reference-character sets are excluded from the dropdown.
Selects a character from your vault, outputting
PIXLSTASH_PROJECT and
PIXLSTASH_CHARACTER wires.
Requires PixlStash v1.2.1+.
Loads images as IMAGE and MASK tensors.
Picker mode opens a thumbnail browser to choose
exactly the images you want; browse mode fetches
automatically from any connected project, set, or character
filter. Context wires pass straight through to a downstream saver.
Uploads images and optionally assigns them to a project, set, and/or character. Supports embedded workflow metadata in PNG output and returns the IDs of successfully imported pictures.
Search by likeness to a face, or combine several reference images into a single embedding query (e.g. "an old man and a young man drinking beer"). Filter by project, character, and set by wiring those inputs. Requires PixlStash v1.4+.
Pull images out of the vault by meaning. Type a text string and the node uses PixlStash's semantic search to return the closest matches. Filter by project, character, and set. Requires PixlStash v1.4+.

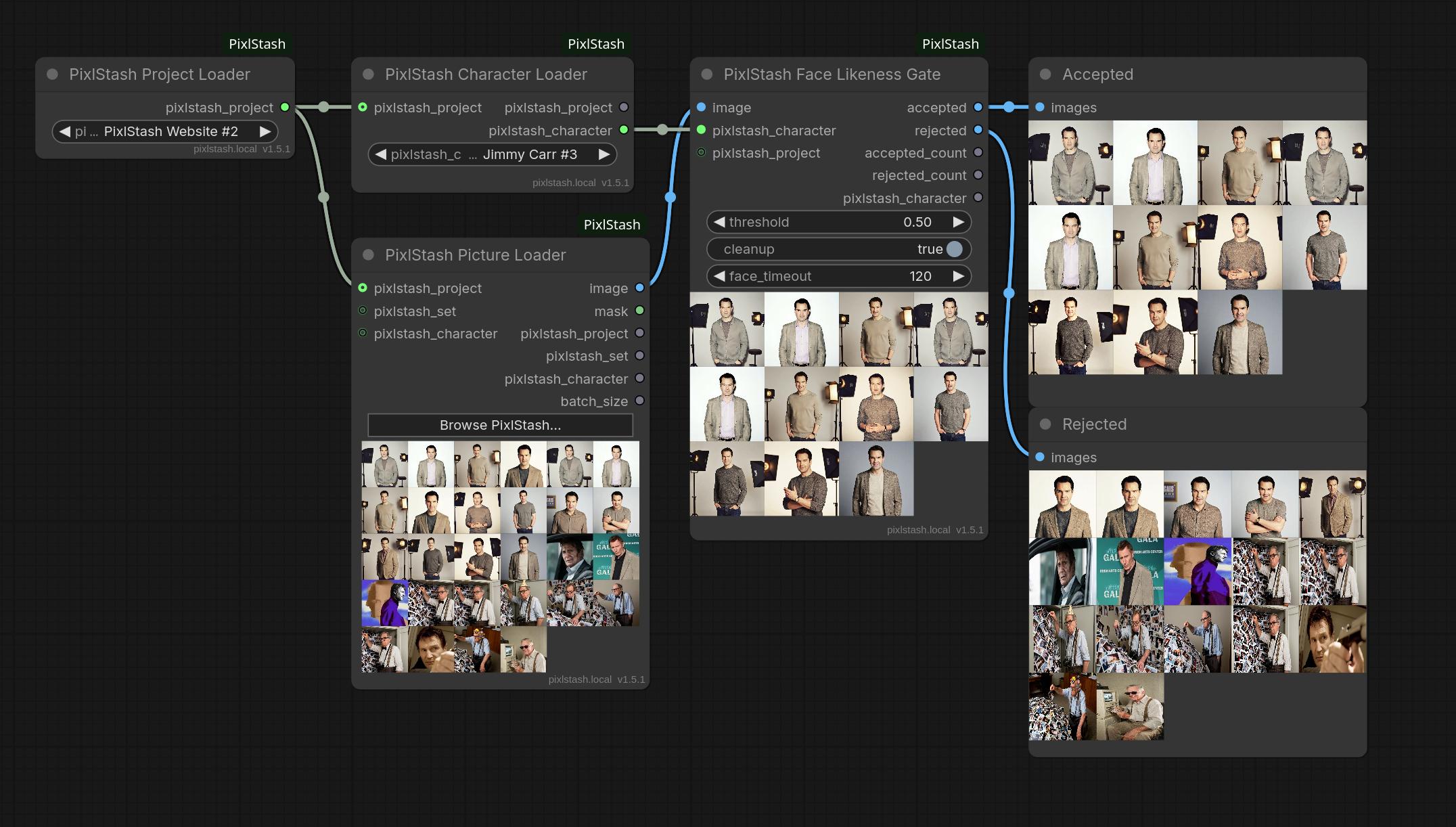

Keep only the generations that actually match a reference
character. Wire in a Character Loader plus a batch of images, set
a likeness threshold, and the gate splits the batch into
accepted and rejected streams (with
counts) — so you never waste compute polishing an off-model
render.
Requires PixlStash v1.4+ and a running face-extraction
worker.
Ready-to-load workflow JSON files ship in the examples directory. They use only PixlStash nodes plus core ComfyUI nodes, so they load on any install. Click a screenshot to enlarge it.
The starting point: load images from a project, set, or character and save the results straight back into your vault.

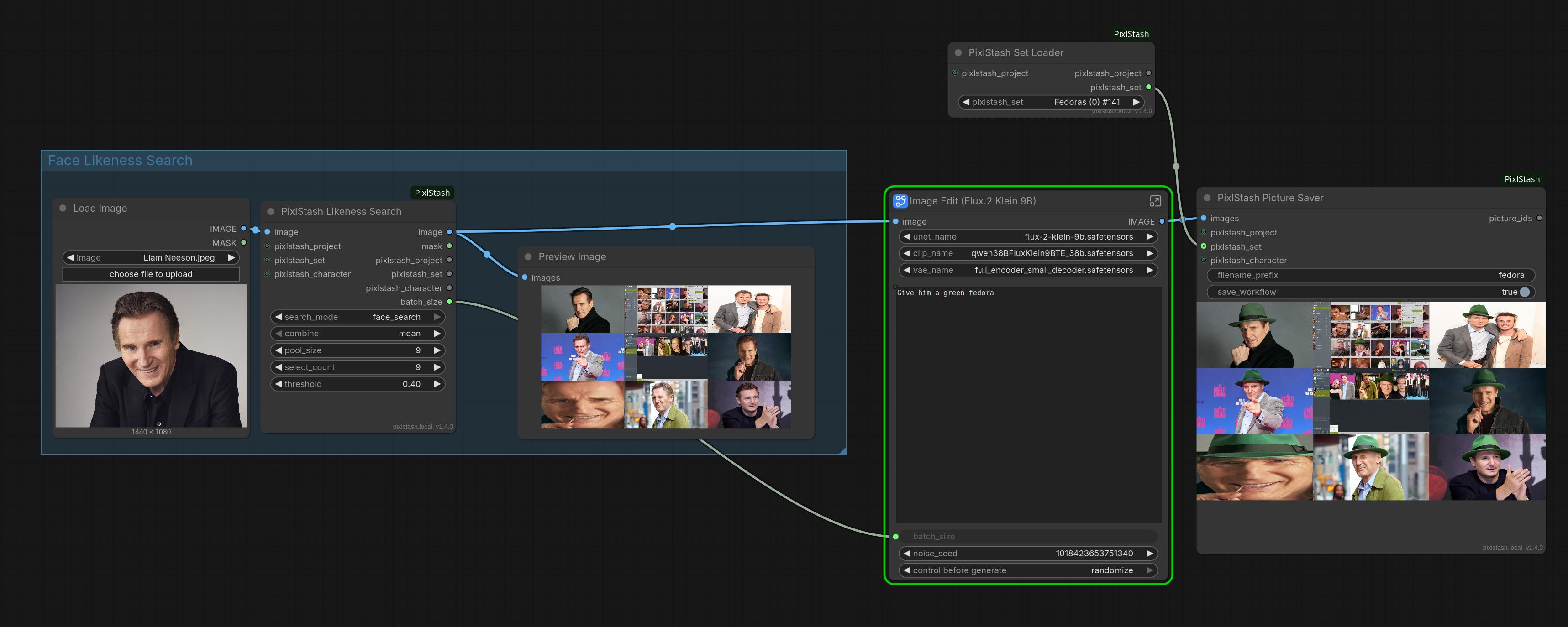

Open workflow JSON →End to end: find source images by face or meaning, run them through an edit pipeline, and save the edited results back to PixlStash.

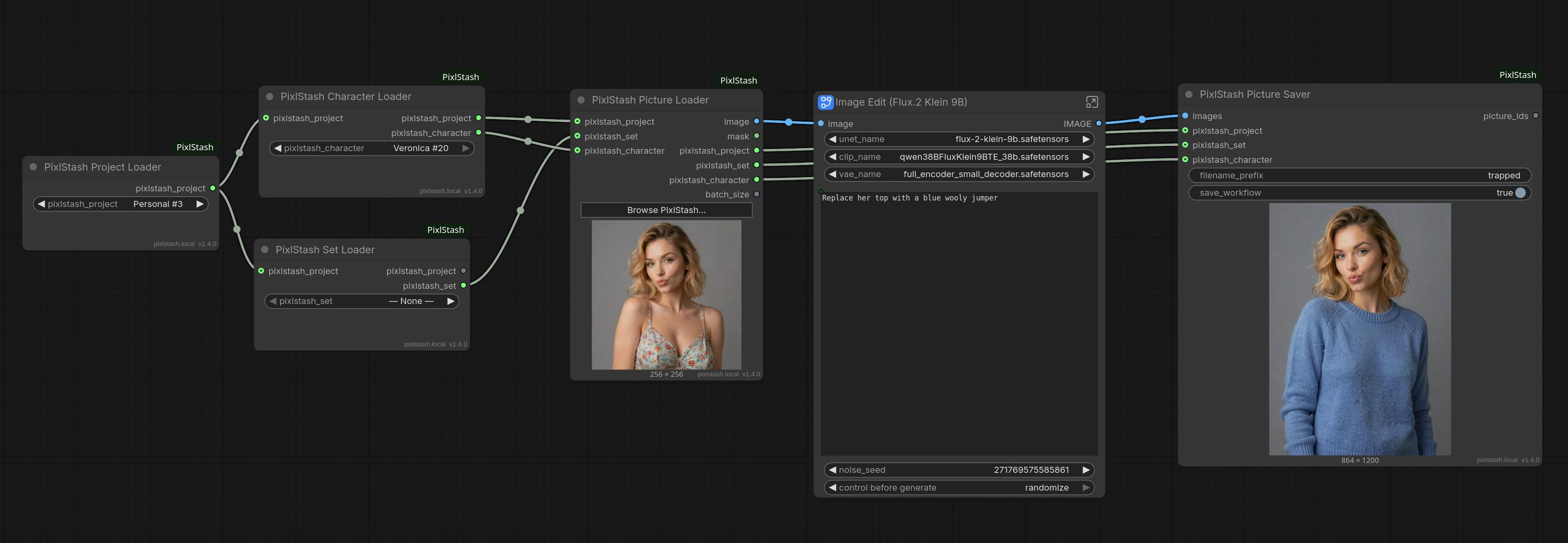

Open workflow JSON →Load a picture from the vault and edit it with a plain-language instruction ("replace her top with a blue wooly jumper"), then save it tagged to the same character.

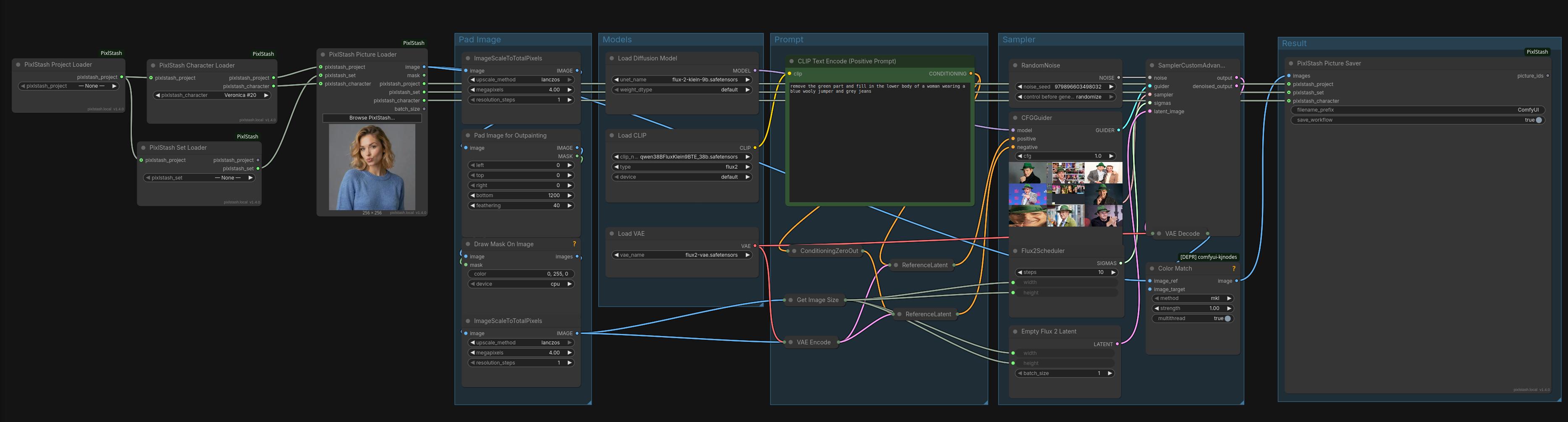

Open workflow JSON →Extend a loaded vault image beyond its original frame, then save the wider result back with its metadata intact.

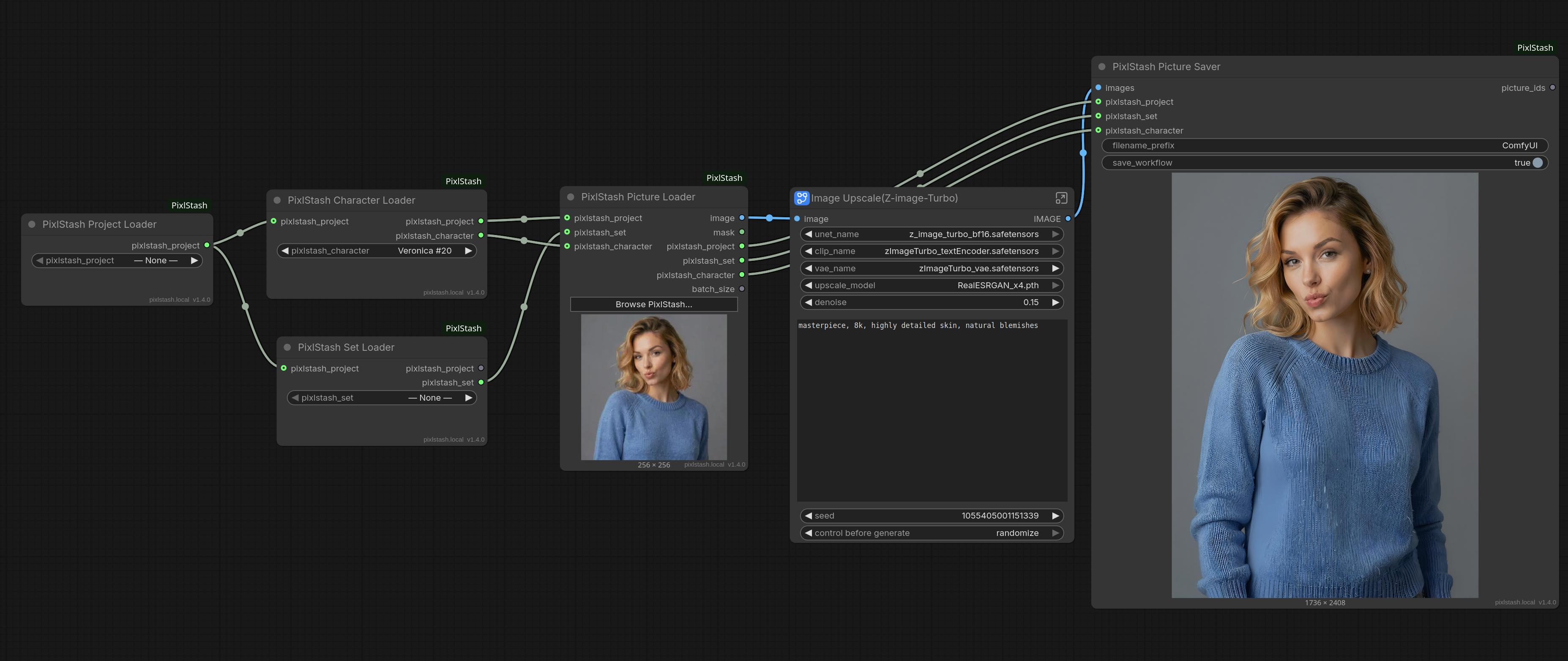

Open workflow JSON →Upscale a vault image and write the higher-resolution result straight back to PixlStash with metadata preserved.

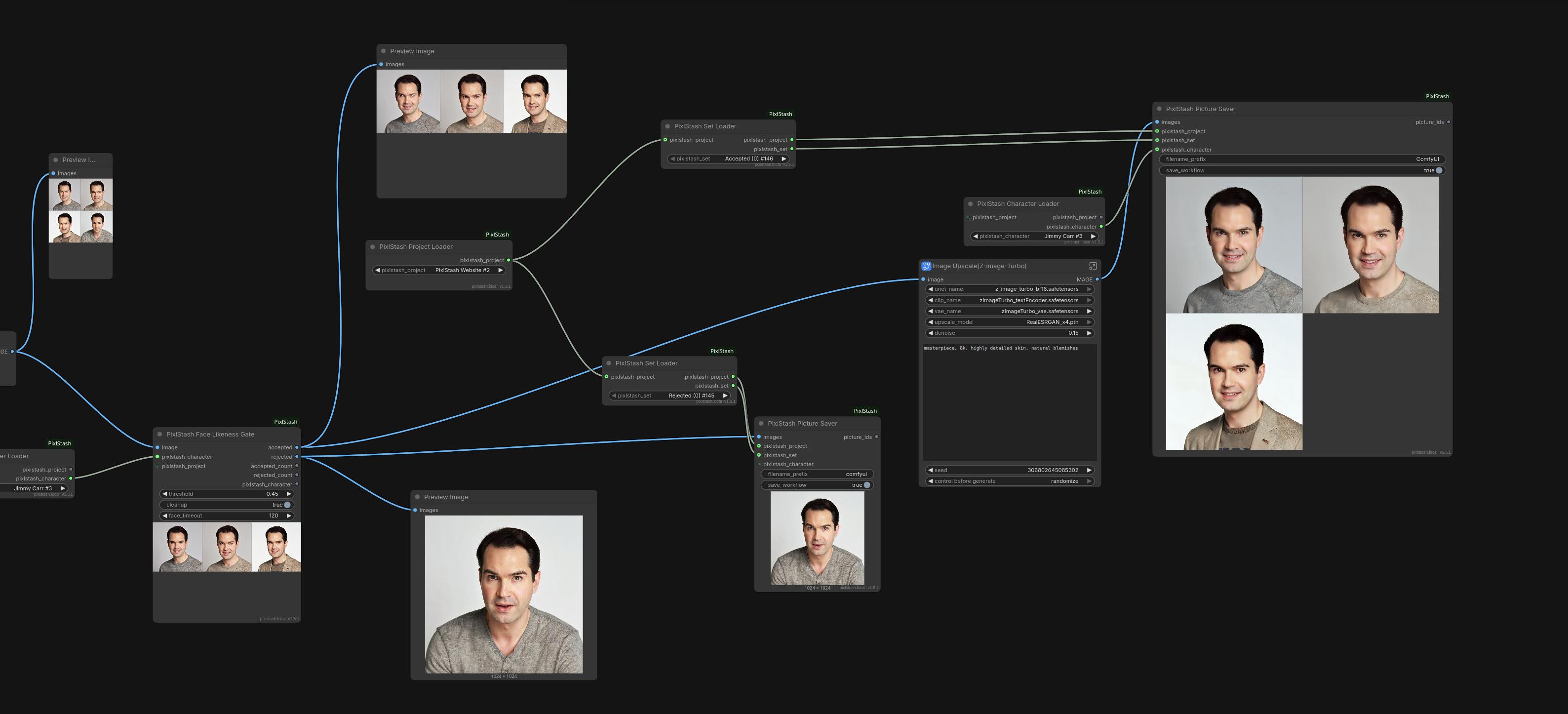

Open workflow JSON →Run it end to end: generate with a character LoRA, gate by face likeness, then upscale the accepted frames and save accepted and rejected streams to separate sets.

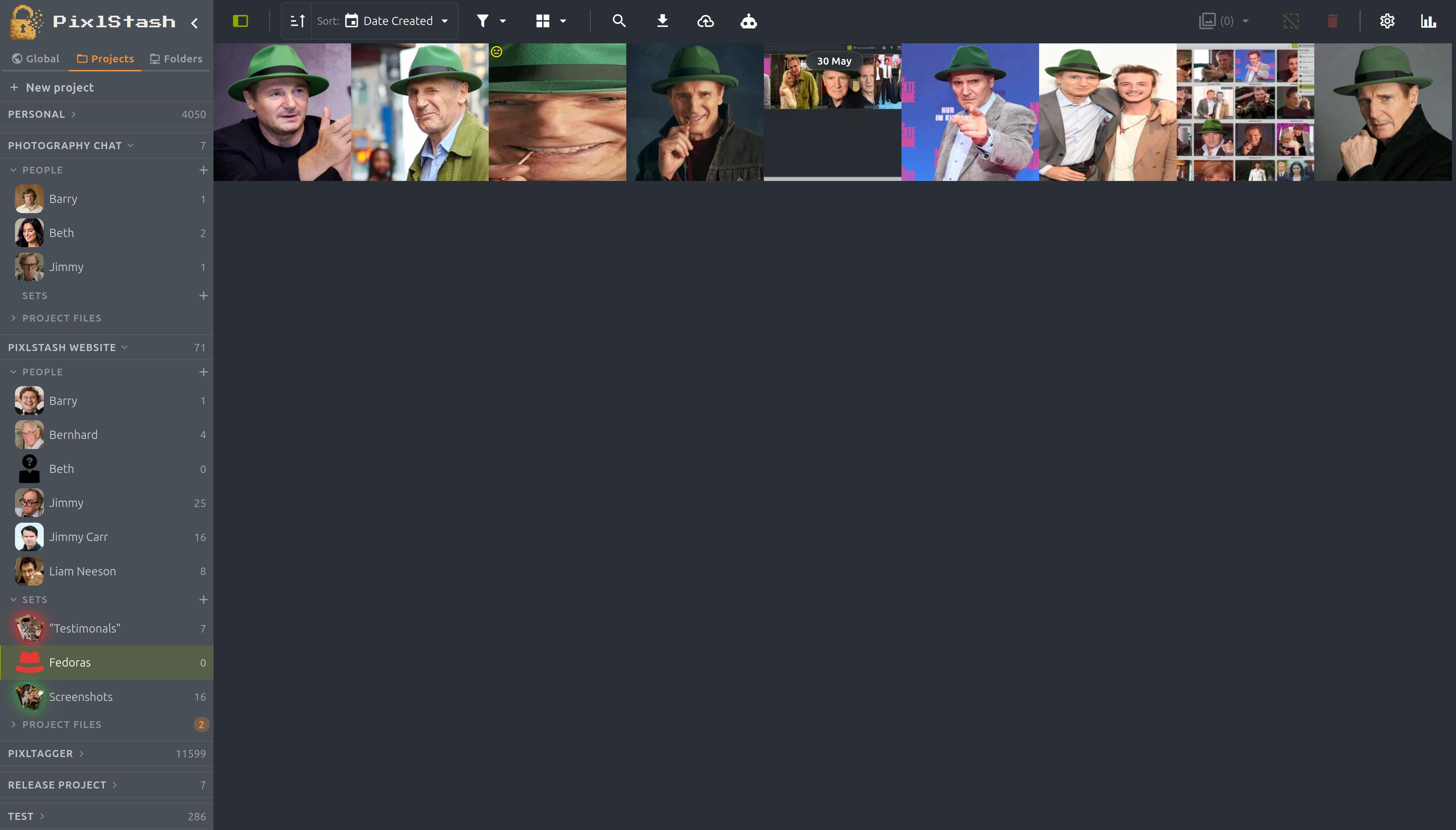

Open workflow JSON →Because the Picture Saver writes straight to PixlStash, everything you generate or edit shows up organised by project, set, and character — ready to search, tag, and curate.
Add the PixlStash nodes to your ComfyUI install, then point them at your vault.

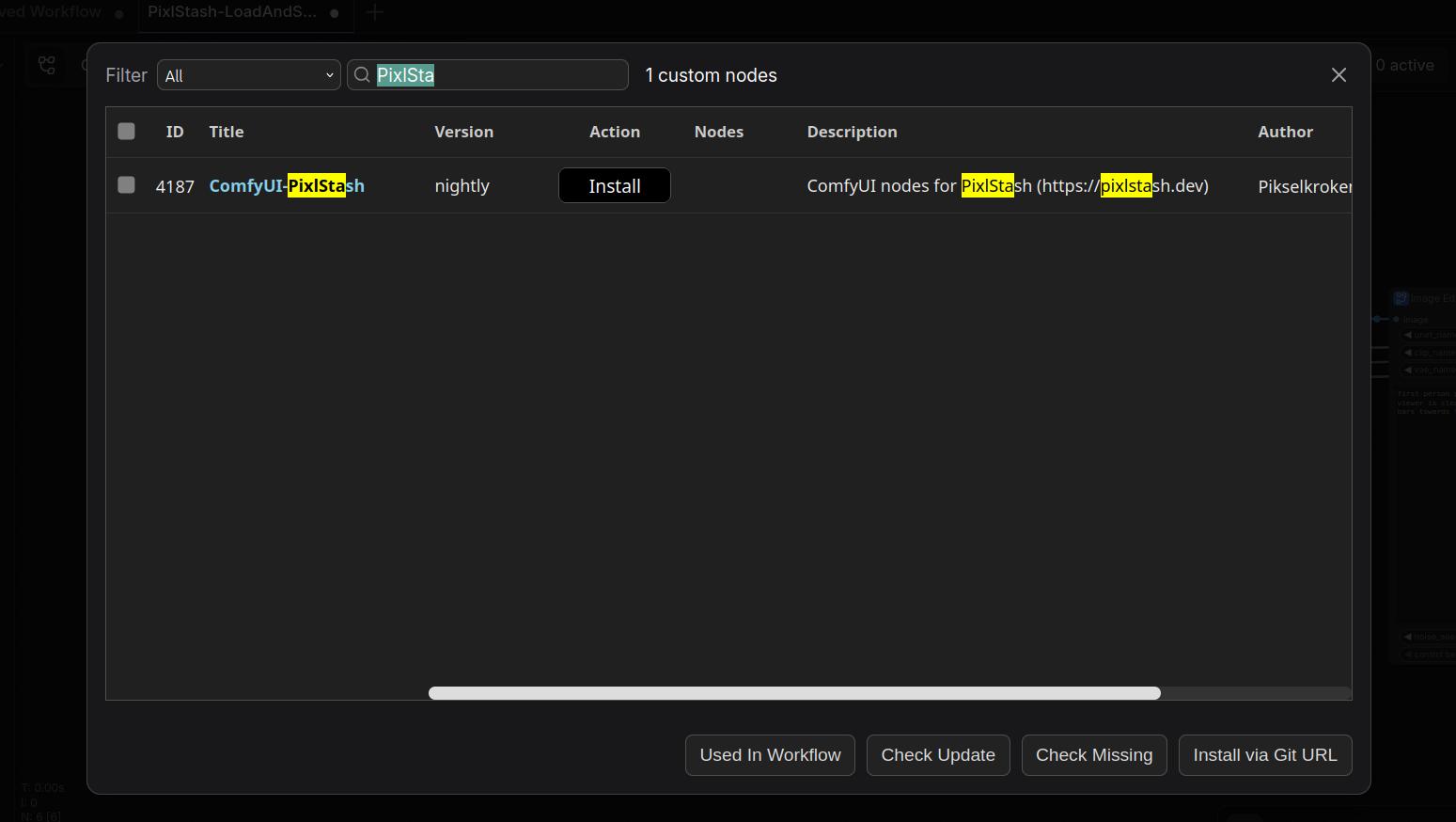

Click Manager in the ComfyUI menu, then open the Custom Nodes Manager. Don't have it yet? Install ComfyUI Manager first.
Search for ComfyUI-PixlStash and click
Install on the matching result.
Restart ComfyUI when the install finishes, then set your PixlStash URL and API token under Settings > PixlStash.
Restart ComfyUI after cloning, then configure your PixlStash URL and API token under Settings > PixlStash.
| Setting | Description |
|---|---|
| URL | Base URL of your PixlStash instance. |
| API Token | A token with the required read or write scope. The search and loader nodes need read scope; the Picture Saver and Face Likeness Gate need write scope. |
| Verify SSL | Whether to validate the server certificate. |
Credentials live only in ComfyUI's settings — they're never written
into a saved workflow, so you can share a .json safely.
Need a token? Create a scoped one in PixlStash under user settings —
see the getting-started tour and the
API reference.
